BLACKBOX-62 PORTABLE WASTE MANAGEMENT SYSTEM
The BlackBox-62 portable waste management system is a portable all-in-one waste disposal solution. It comes with a commercial grade portable wastewater tank and an automated pump system.
BLACKBOX-62 Portable Waste Management System – Disposal Solution
The BLACKBOX-62 portable waste station is a perfect waste disposal solution for portable cabins, portable offices, and for recreational vehicles used as an additional semi-permanent dwelling. It is the best solution to move waste water from a portable building to a suitable drain located on a suburban or rural property, building site, holiday batch etc.
BLACKBOX-62 Portable Waste Management System – Performance
The BLACKBOX pump (manufacturers specs) will pump fluids up to 100 metres in distance or up to a head height of 8 metres (we recommend working on 80 metres distance or 6 metres head height – best to be conservative with toilet waste). The pump has a flow diameter of 40mm. It is recommended that 40mm alkathene pipe or 40mm pressure pipe is connected to the BLACKBOX-62 outlet.
BLACKBOX-62 Portable Waste Management System
BLACKBOX-62 Portable Waste Management System overview

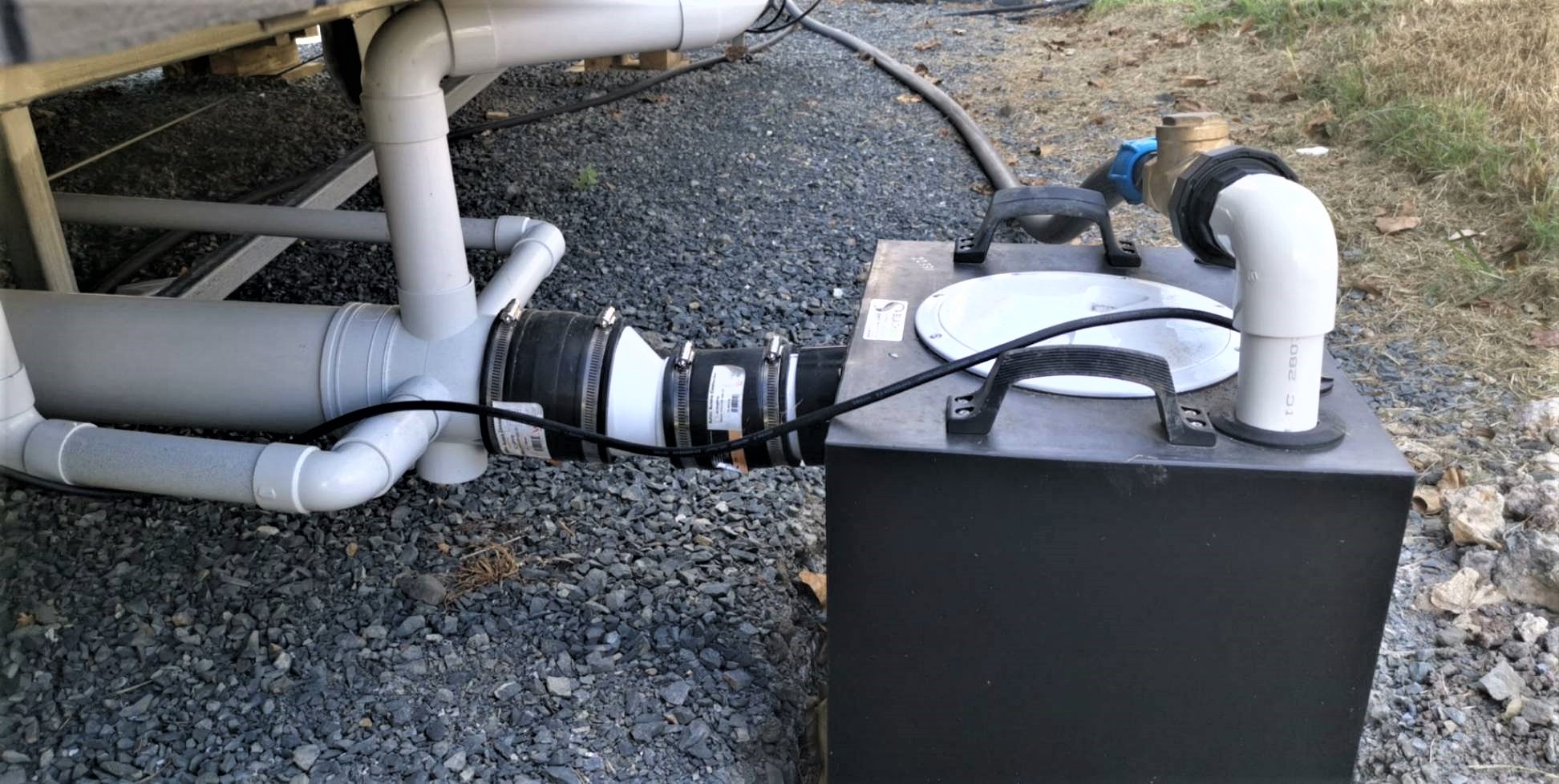

 Generally installed on the outside of a building or recreational vehicle (except in a boat).
 Waste water from kitchen, bathroom and toilet drain into a 62 litre holding tank. Within the holding tank is a large capacity centrifugal pump (750 Watt 15,000 litres per hour flow rate) with built in float switch. When the level of fluid in the holding tank reaches a certain level, a float automatically activates/turns on the pump. The pump then sucks out the waste water through a 40mm diameter outlet pipe. When the fluid in the holding tank drops to a certain level, the float switch drops and deactivates/turns off the pump.
 No moving parts to clog-up or break
 Designed for low/minimal stress on all components (problem free service and long operational life)
 Manufactured in New Zealand from best quality components
 Installation is simple, no professional help (e.g. by a plumber) required.
a) Pump warranty – 24 month return to base warranty
b) Holding tank warranty – 20 year return to base warranty
c) Product – 30 day return to base satisfaction refund
BLACKBOX-62 Portable Waste Station Fittings
A BLACKBOX-62 portable waste system comes with the following components:
 62 litre premium grade tank
 25mm emergency drain tap
 750 Watt 40mm submersible sewage pump with float switch
 10 metre 3 pin plug lead

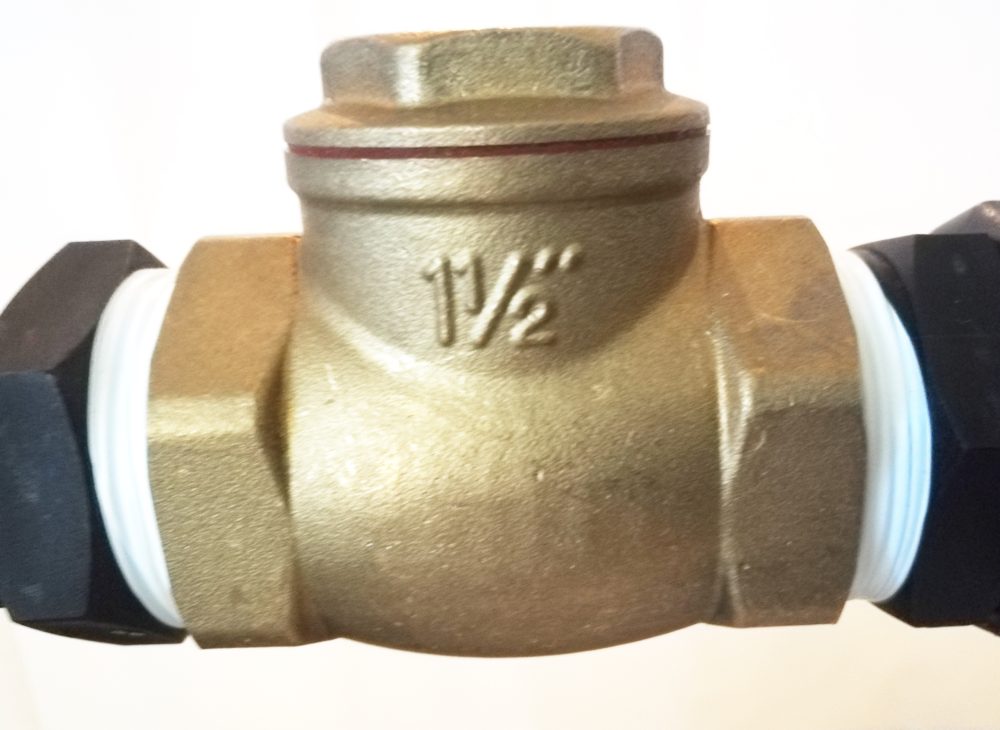

 Brass Flap Check Valve
 80mm Valterra RV inlet connection (comes with 80mm – 100mm adaptor fitting)
 Quick release Anka barrel union
 220mm airtight hatch
 40mm outlet connection fitting
 Tank vent
 Certified pressure pipe and pressure fitting
 Rubber Uniseal (USA)
BLACKBOX-62 Portable Waste Station Tank Specifications
 Exceeds NZ standard AS/NZS4766
 Wont crack, fade or rust
 One piece construction – exceptionally strong, easy to clean
 UV stabilised, withstands harsh NZ sun & resists algae growth
 Height 455mm
 Depth 455mm
 Width 350mm
 Tank capacity 62 litres
BLACKBOX-62 Portable Waste Station Pump Specifications
 Motor 750 Watt
 Cable Length 10 metres
 Max Temperature 35 Degrees
 Flow Rate 15000 litres/hour
 Max Head Height 6 metres (conservative)
 Max Particle Size 35 mm
A local manufacturer of portable cabins has replaced over 100 macerator systems with a BLACKBOX type systems.
Please contact Storeit4less for any installation tips or step-by-step advice, on (021) 355 005
You can purchase online this product
