BLACKBOX-270 Portable Waste Management System
The BLACKBOX-270 portable waste management system is a portable all-in-one waste disposal solution. It comes with a commercial grade wastewater tank and an automated pump system.
BLACKBOX-270 Portable Waste Management System – Disposal Solution
The BLACKBOX-270 portable waste management system is a perfect waste disposal solution for portable cabins, portable offices, a batch, vehicles used as an additional semi-permanent living, or general dwellings. It is the best solution to move waste water from a premise to a suitable waste disposal or grey water disposal location etc.
BLACKBOX-270 Portable Waste Management System – Performance
The BLACKBOX-270 will pump fluids up to 100 metres in distance or up to a head height of 8 metres (we recommend working on 80 metres distance or 6 metres head height – best to be conservative with toilet waste). The pump has a flow diameter of 40mm.
BLACKBOX-270 Portable Waste Management System – overview
 Simple to install on the outside or beneath a building or recreational vehicle.
 Waste water from kitchen, bathroom, wash house and toilet drain into a 270 litre holding tank. Within the holding tank is a large capacity centrifugal pump (750 Watt 15,000 litres per hour flow rate) with built in float switch. When the level of fluid in the holding tank reaches a certain level, a float automatically activates/turns on the pump. The pump then sucks out the waste water through a 40mm diameter outlet pipe. When the fluid in the holding tank drops to a certain level, the float switch drops and deactivates/turns off the pump.
 No moving parts to clog-up or break
 Designed for low/minimal stress on all components (problem free service and long operational life)
 Manufactured in New Zealand from best quality components
 Installation is simple, no professional help (e.g. by a plumber) required.
a) Pump warranty – 24 month return to base warranty
b) Holding tank warranty – 20 year return to base warranty
BLACKBOX-270 Portable Waste Management System – Fittings
A BLACKBOX-270 waste management system comes with the following components:
 270 litre premium grade tank
 750 Watt 40mm submersible sewage pump with float switch
 10 metre 3 pin plug lead

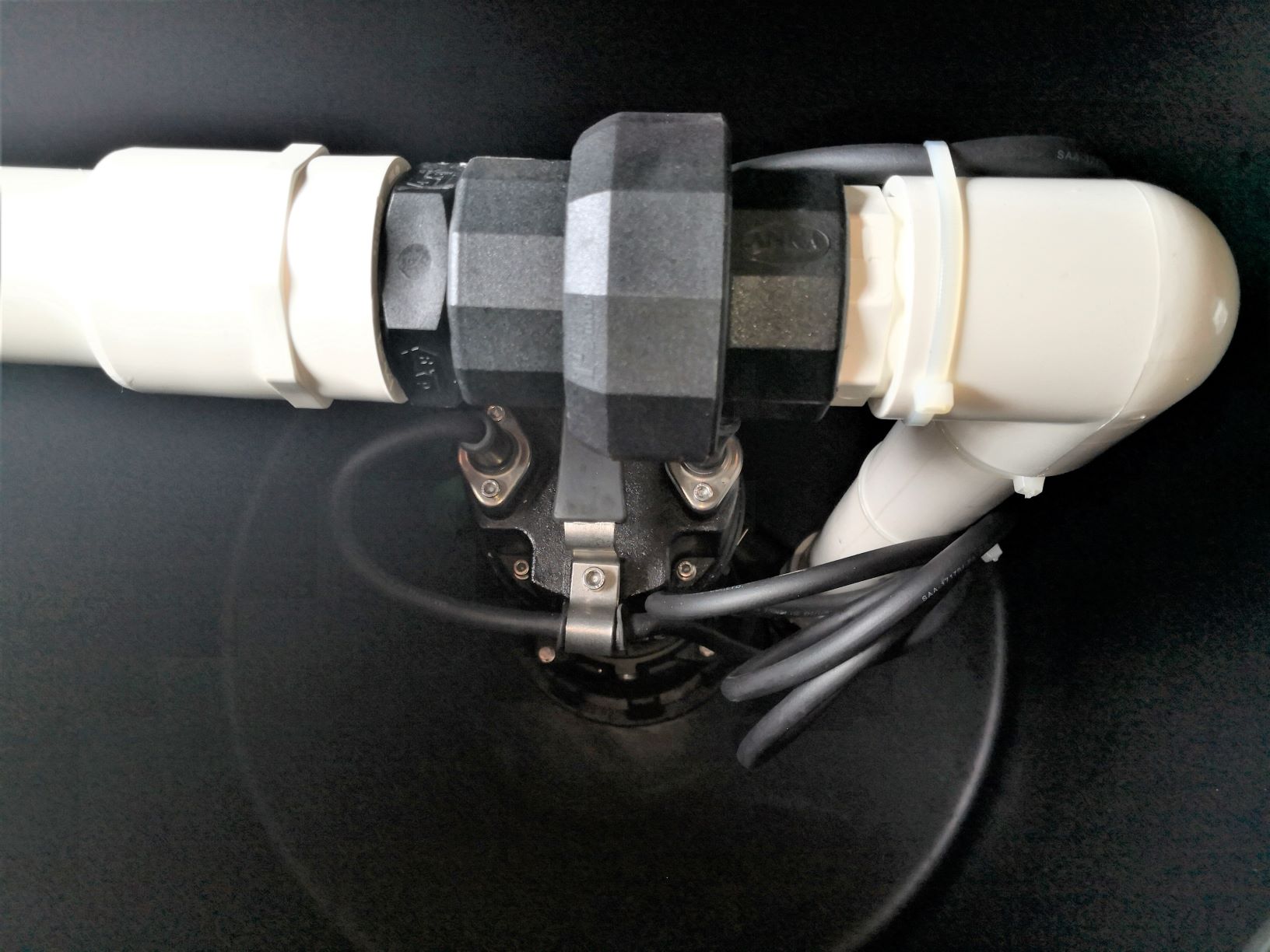

 Quick release Anka barrel union
 450mm access hatch
 40mm outlet
 100mm inlet
 Tank vent
 Certified pressure pipe and pressure fitting
 Rubber Uniseal (USA)
BLACKBOX-270 Portable Waste Management System – Tank Specifications
 Exceeds NZ standard AS/NZS4766
 Wont crack, fade or rust
 One piece construction – exceptionally strong, easy to clean
 UV stabilised, withstands harsh NZ sun & resists algae growth
 Height 790mm
 Diameter 710mm
 Tank capacity 270 litres
BLACKBOX-270 Portable Waste Management System – Pump Specifications
 Motor 750 Watt
 Cable Length 10 metres
 Max Temperature 35 Degrees
 Flow Rate 15000 litres/hour
 Max Head Height 7 metres
 Max Immersion 6 metres
 Max Particle Size 35 mm
Please contact Storeit4less for any installation tips or step-by-step advice, on (021) 355 005
You can purchase online this product
